तन्य शक्ति परीक्षण मशीन
Created with Pixso.

High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber

High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber

ब्रांड नाम: HongCe
मॉडल संख्या: HC1017A
एमओक्यू: 1 सेट
कीमत: Negotiatable
भुगतान की शर्तें: एल/सी, टी/टी, डी/पी
आपूर्ति करने की क्षमता: 10 सेट प्रति माह
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
calibration certificate(cost additional)
वोल्टेज आपूर्ति:
220V
विस्थापन सटीकता:
± 0.5%
विरूपण सटीकता:
± 0.5%
मोटर -शक्ति:
2kw
वज़न:
145 किग्रा
फिक्स्चर:
दो सेट
सुरक्षा उपकरण:
आपातकालीन स्टॉप बटन से लैस
गारंटी:
एक वर्ष
पैकेजिंग विवरण:
प्लाईवुड
प्रमुखता देना:

10kN/20kN/50kN Tensile Strength Testing Machine

,

220V Universal Testing Machine

,

±0.5% Displacement Accuracy Material Testing Machine

उत्पाद वर्णन
High-Precision Universal Tensile Strength Testing Machine - 10kN/20kN/50kN for Metal/Plastic/Rubber Compression & Tension Detection
Product Description
The Universal Tensile Strength Testing Machine is a high-precision testing device widely used in laboratories and industrial production. It supports tensile, compression, flexure, shear, and other mechanical property tests on a variety of materials, including metals, plastics, rubber, and composites. Its user-friendly design, compatible with international standards, ensures accurate and reliable test data every time, providing a solid foundation for scientific research and quality control.
Product Features
  • High-precision servo control system: Ensures stable loading and minimal error.
  • Versatile testing: Supports multiple mechanical tests including tension, compression, flexure, shear, and peel.
  • International Certification Compatibility: Complies with ASTM, ISO, and IEC standards, making it suitable for export and international testing laboratories.
International Reference Standards
  1. ASTM D638 - Standard Test Method for Tensile Properties of Plastics
  2. ASTM D412 - Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers--Tension
  3. ASTM E8/E8M - Standard Test Methods for Tension Testing of Metallic Materials
  4. ISO 527-1/2 - Plastics - Determination of Tensile Properties
  5. IEC 60695 - Fire hazard testing standards involving mechanical stress
Technical Parameters
Item Specification
Capacity 10 kN
Accuracy Class 0.5
Maximum crossbeam load 20 kN
Effective force range 0.02/100-100%
Machine travel 800 mm
Test speed 0-500 mm/min
Control system Fully digital AC servo controller
Voltage 220 V, 50 Hz
Test Items
Tensile Strength
Elongation at Break
Compressive Strength
Flexural Strength
Shear Strength
Detail Pictures

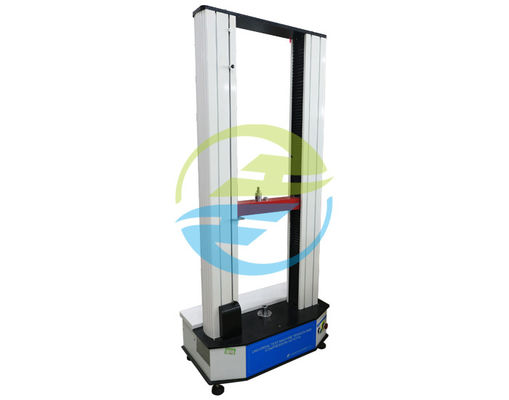

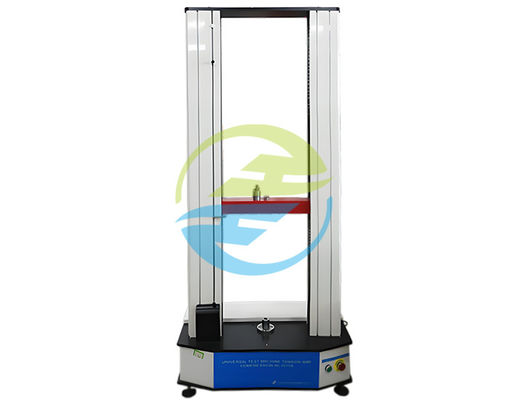

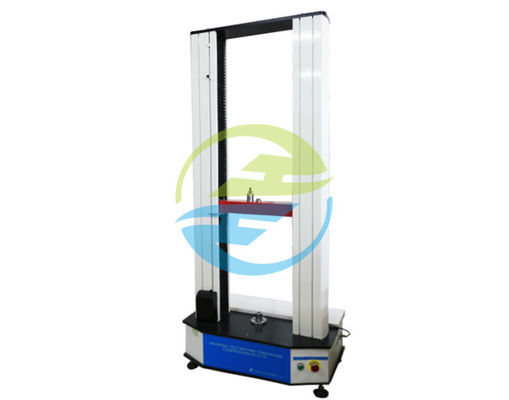

High-Precision Universal Tensile Strength Testing Machine with 10kN/20kN/50kN Capacity and ±0.5% Displacement Accuracy for Metal/Plastic/Rubber 0
