उत्पादों का विवरण

Created with Pixso. घर Created with Pixso. उत्पादों Created with Pixso.
परीक्षण फिंगर जांच
Created with Pixso.

IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment

IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment

ब्रांड नाम: HongCe
मॉडल संख्या: HT-I09
एमओक्यू: 1 सेट
कीमत: बातचीत योग्य
भुगतान की शर्तें: टी/टी
आपूर्ति करने की क्षमता: प्रति माह 20 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
Calibration certificate(cost additional)
प्रोडक्ट का नाम:
टेस्ट पिन
गारंटी:
1 वर्ष
मानकों:
IEC61032,IEC60065 और आदि।
सामग्री:
नायलॉन और स्टेनलेस स्टील
हैंडल की लंबाई:
20
धातु पिन की लंबाई:
15 (0, -0.1)
बफ़ल व्यास:
Ф25±0.2
चकरा मोटाई:
4
पैकेजिंग विवरण:
एल्यूमीनियम बॉक्स
प्रमुखता देना:

IEC 60065 test finger probe

,

precision test finger for electrical equipment

,

safety verification test probe

उत्पाद वर्णन
IEC 60065 Test Pin for Accessibility & Safety Verification
Precision Test Finger Probe for Electrical & IT Equipment
Product Overview
The IEC 60065 Test Pin is a precision-engineered Test Finger Probe designed to verify accessibility and safety of electrical, electronic, and information technology equipment. Manufactured directly by HongCe, this probe ensures reliable, repeatable testing results fully compliant with international safety standards. It is an essential tool for laboratories, certification bodies, and manufacturers focused on product compliance and user safety.
Compliance Standards
Conforms to IEC 60065 clause 9.1.1.2, IEC61032 figure 9 Test probe13, IEC60950-1 figure 2B, IEC60335.
Key Features & Advantages
  • Precision-machined probe tip with stable dimensional tolerance
  • Fully compliant with IEC 60065 accessibility test requirements
  • Smooth surface finish to prevent false test results
  • Ergonomic insulated handle for safe and comfortable operation
  • High mechanical strength, resistant to bending and wear
  • Suitable for repetitive testing in laboratory environments
  • Manufacturer-direct supply with stable lead time
  • Customizable materials and tolerances upon request
Detectable Test Items
  • Accessibility of hazardous live parts
  • Compliance with protection against electric shock
  • Opening size safety verification
  • Mechanical design safety validation
  • Product enclosure integrity
Technical Parameters
Model/Parameter HT-I09
Item Name Short test pin probe
Metal pin tip diameter Ф3 (0, -0.05)
Metal pin tail diameter Ф4 (0, -0.05)
Metal pin length 15 (0, -0.1)
Baffle diameter Ф25±0.2 Test Finger Probe
Baffle thickness 4
Handle diameter Ф10
Handle length 20
Product Images
IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment 0

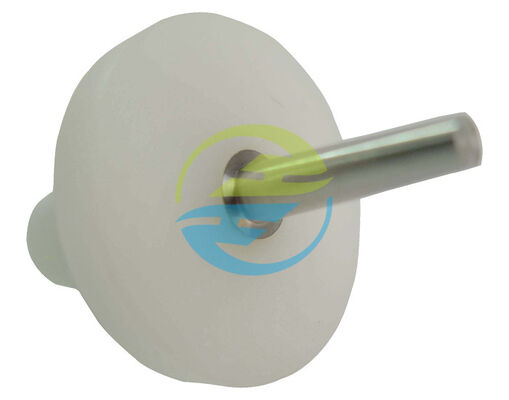

IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment 1
IEC 60065 Test Pin for Accessibility & Safety Verification | Precision Test Finger Probe for Electrical & IT Equipment 2
