| ब्रांड नाम: | HongCe |
| मॉडल संख्या: | एसएच-16 |
| एमओक्यू: | 1 सेट |
| कीमत: | Negotiatable |
| भुगतान की शर्तें: | एल/सी,टी/टी |
| आपूर्ति करने की क्षमता: | प्रति माह 20 सेट |

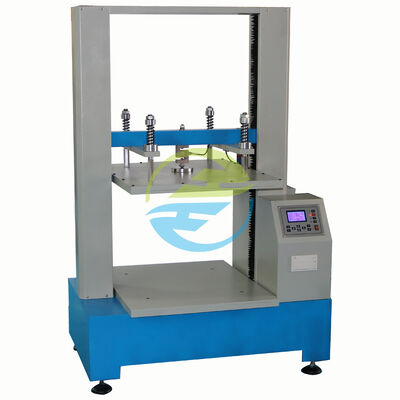

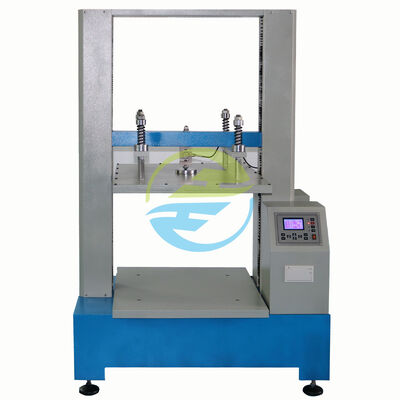

The HongCe Carton Compression Impact Testing Machine is designed for professional compressive strength, stacking resistance, and deformation testing of cartons, corrugated boxes, and packaging materials. Engineered for reliable quality control and transportation simulation, this equipment helps manufacturers improve packaging durability while reducing product damage risks during storage and shipment.
Produced directly by HongCe, the machine combines precision control technology, stable testing performance, and durable structural design, making it suitable for laboratories, packaging manufacturers, logistics industries, and quality inspection departments worldwide.
| Capacity | 1T |
| Accuracy | ±0.5% |
| Control panel | can display and print test times, test value, peak value and fracture value etc. |
| Displacement | 650~1500mm |
| Test speed | 0-5000N 12.5±2.5mm/min; 5001-10000N 10±3mm/min |
| Test space | 600~1500mm |
| Compressive strength test function | to determination of the ultimate compressive strength of the sample, the test machine will automatically record the peak pressure |
| Stacking strength test functions | to test the bearing durability of packaging by simulate storage conditions, tester compress the sample in a speed of 12.5(10)mm/min till the pressure reach preset force, when packaging deformation and pressure drop 5% set value, tester will automatic supplement pressure to the preset pressure and maintain till set test time completed, then tester will stop automatically. |
| Power gear | Ibf, N, Kgf |
| Transmission mode | precision ball screw drive |
| protection device | leakage protection, overload automatic shutdown protection, travel limit protection |
| print function | automatic print report |
| motor | Taiwan AC variable frequency motor |
| Power supply | AC220V 50Hz |
| Dimension | 1100*800*1300mm |
| Weight | approximate 300kg |
It is used to evaluate carton compressive strength, deformation resistance, and stacking performance for packaging quality control.
Packaging manufacturers, logistics companies, e-commerce suppliers, and quality inspection laboratories widely use this machine.
Yes. The machine is suitable for various carton and packaging dimensions within the testing range.
Yes. It supports continuous pressure holding tests for long-term load evaluation.
Yes. HongCe can provide customized testing solutions according to customer requirements.
