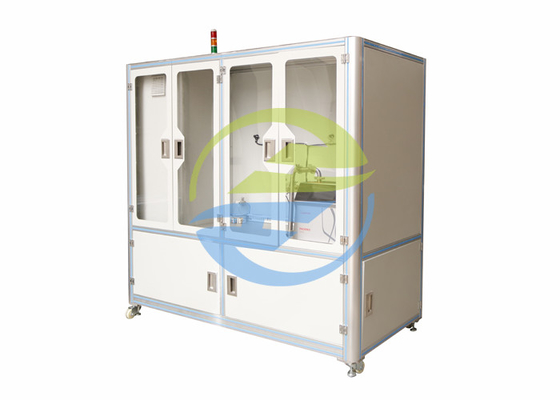

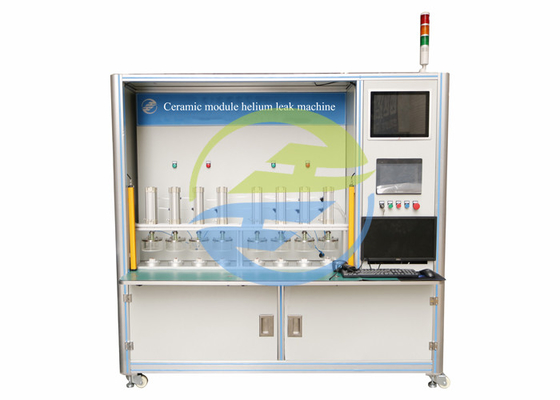

2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s

2000Pa Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/s

ब्रांड नाम: HongCe
मॉडल संख्या: HJ113
एमओक्यू: 1 सेट
कीमत: बातचीत योग्य
भुगतान की शर्तें: टी/टी
आपूर्ति करने की क्षमता: प्रति माह 1 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
Calibration Certificate(cost additional)
गारंटी:
12 महीने
workpiece:
रिले का सिरेमिक घटक
पैक के लिए दबाव भरना:
2 ~ 2.5 केपीए
पैक के लिए निकासी दबाव:
-2~-3 केपीए
ट्रैसर गैस:
हीलियम
अलार्म रिसाव दर:
1.44E-4mbar.L/S
चक्र:
≤2 मिनट
परीक्षण विधि:
गन सक्शन
पैकेजिंग विवरण:
प्लाईवुड
प्रमुखता देना:

Ceramic Component Helium Leak Testing Equipment

,

11pa·m3/s Helium Leak Testing Equipment

उत्पाद वर्णन
Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/S This equipment is used to test the sealing performance of ceramic components of new energy car relay products. Overview of Helium Leak Testing Equipment: The leak testing equipment for ceramic components is displayed and controlled by touch screen and button switch. Workpieces are placed manually. Two stations are designed, and each station detects four products at the same time. Products with
