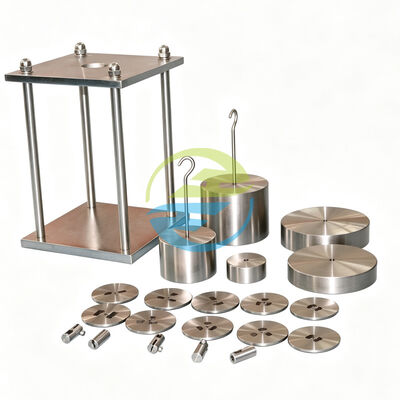

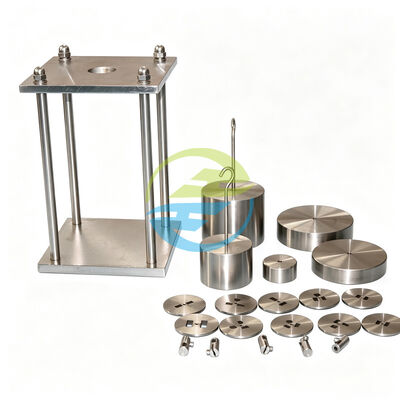

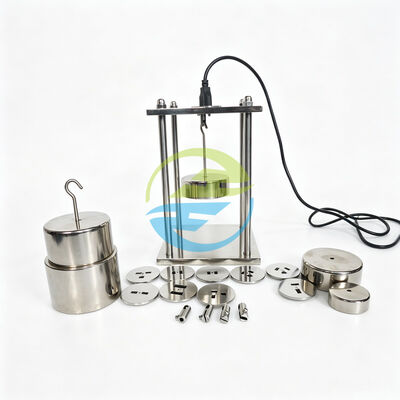

Multi-Region Plug Socket Dimensional Conformity Verification Gauge Kit BS4573 IEC60884 GOST7396 Vacuum Hardened Steel

Multi-Region Plug Socket Dimensional Conformity Verification Gauge Kit BS4573 IEC60884 GOST7396 Vacuum Hardened Steel

ब्रांड नाम: HongCe
मॉडल संख्या: HC9928
एमओक्यू: 1 सेट
कीमत: Negotiatable
भुगतान की शर्तें: टी/टी, एल/सी
आपूर्ति करने की क्षमता: प्रति माह 1 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस:
गुआंग्डोंग, चीन
प्रमाणन:
Third part calibration certificate(cost additional)
गेज सामग्री:
SUS304 ऑस्टेनिटिक स्टेनलेस स्टील
उष्मा उपचार:
वैक्यूम भट्टी: 1050°C, 10⁻³ Pa. तेल शमन + 200°C पर दोहरा तापमान। कठोरता: एचआरसी 58-62
सतही समापन:
रा ≤0.4μm (एन4 प्रति आईएसओ 1302)
आयामी सहिष्णुता:
GO/NO-GO कार्य आयाम: ±0.005mm
प्लग पिन गेज रेंज:
Ø4.0मिमी से Ø6.35मिमी
निकासी बल गेज:
न्यूनतम: 1.5N/2.0N/2.5N। अधिकतम: 30N/40N/50N
नॉन-सॉलिड पिन टेस्ट:
100N ±2N कैलिब्रेटेड डेड वेट के माध्यम से (10.2 किग्रा ± 0.2 किग्रा)
क्रीपेज कार्ड:
8 पीसी: 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 6.0, 8.0 मिमी (±0.02 मिमी)
पैकेजिंग विवरण:
कस्टम फोम-फिट एल्यूमीनियम कैरी केस/छोटा प्लाईवुड
प्रमुखता देना:

IEC60884 Plug Socket Gauge Kit

,

Vacuum Hardened Plug Socket Gauge Kit

,

Multi-Region Plug Socket Gauge Kit

उत्पाद वर्णन
Multi-Region Plug Socket Dimensional Conformity Verification Gauge Kit Product Overview The Multi-National Standard Plug Socket Precision Gauge Set from HongCe is a comprehensive dimensional verification toolkit for quality control, production inspection, and certification auditing of plugs and socket-outlets against four major international standards: BS 4573, IEC 60884-1, GOST 7396, and GB/T 1002. This single gauge set eliminates the need for maintaining four separate kits,
